Proplank

Click-In Timber Battens for Walls & Ceilings to transform any straight or curved surface, indoor or outdoor.
product overview

Proplank Timber Battens

Mortlock Timber

Our Proplank batten system has been expertly designed to minimise installation time and costs without compromising on quality or durability. Utilising steel clips and nylon spacer brackets, the battens can be simply clicked into place for a reliable and attractive result.

The Proplank profile can be used with a wide range of hardwood timber species including blackbutt, jarrah, ironbark, spotted gum and more. For larger projects that require solutions outside of the standard range, almost any timber type can be used for our Proplank profile.

Read more
Mortlock Timber

Product benefits

Easy Installation

Complete click in system, easily adjustable to fit any space

Cost Effective

Save time installing, comes with proprietary corners and end trims

Customisable

Large range of options for limitless design creativity

Strong

Designed for strength for use in commercial spaces

Overview Video

Play Video

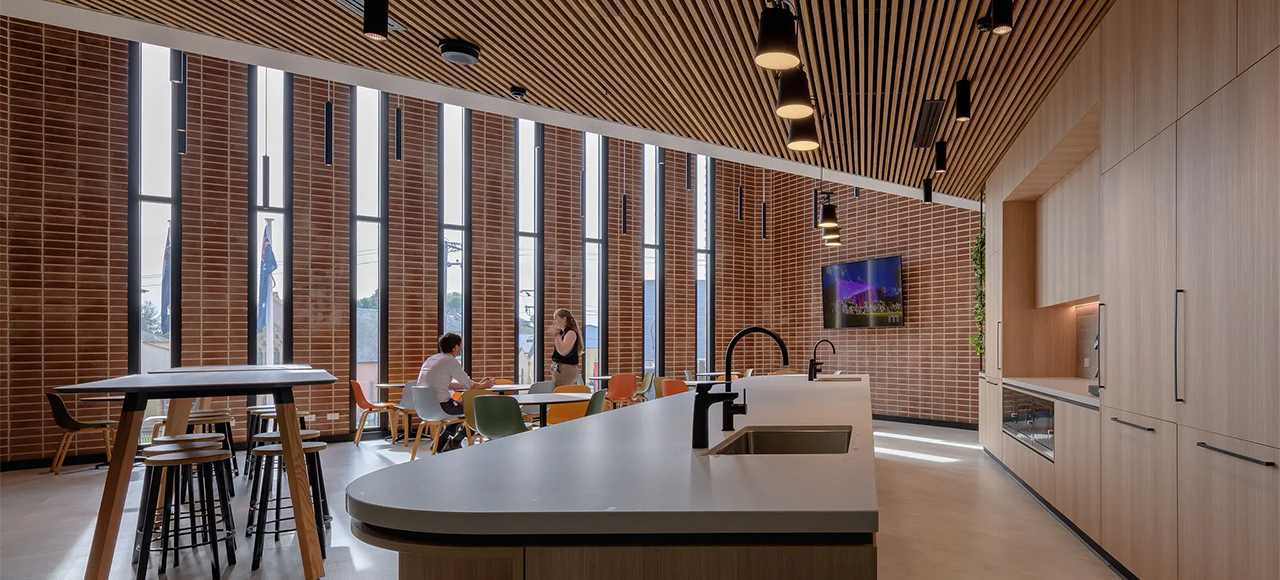

Applications

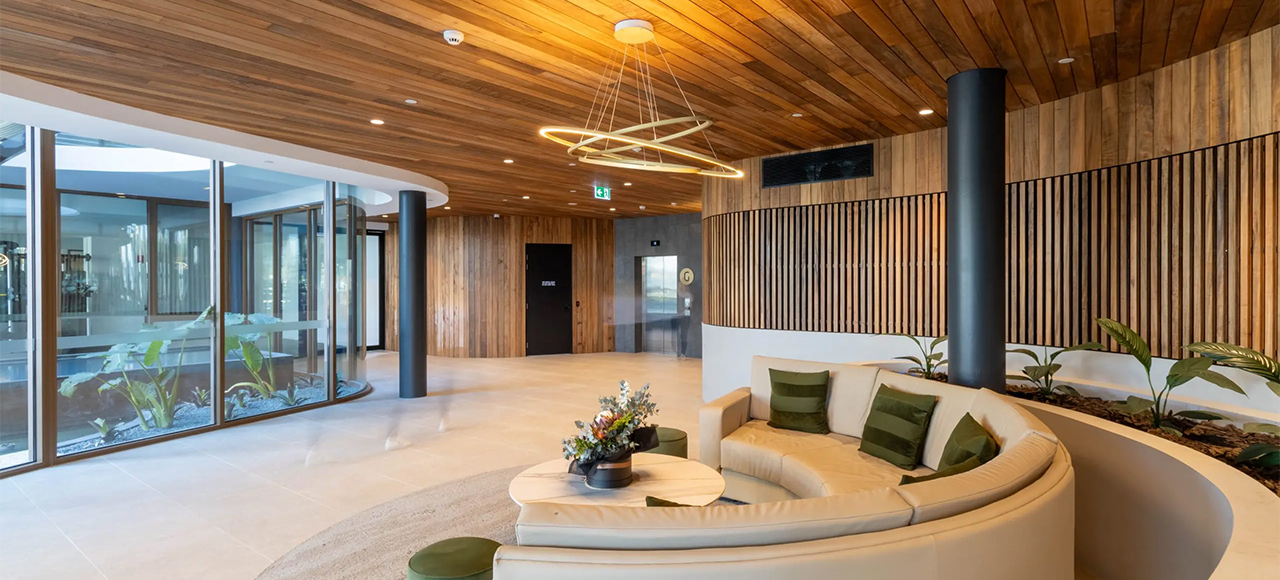

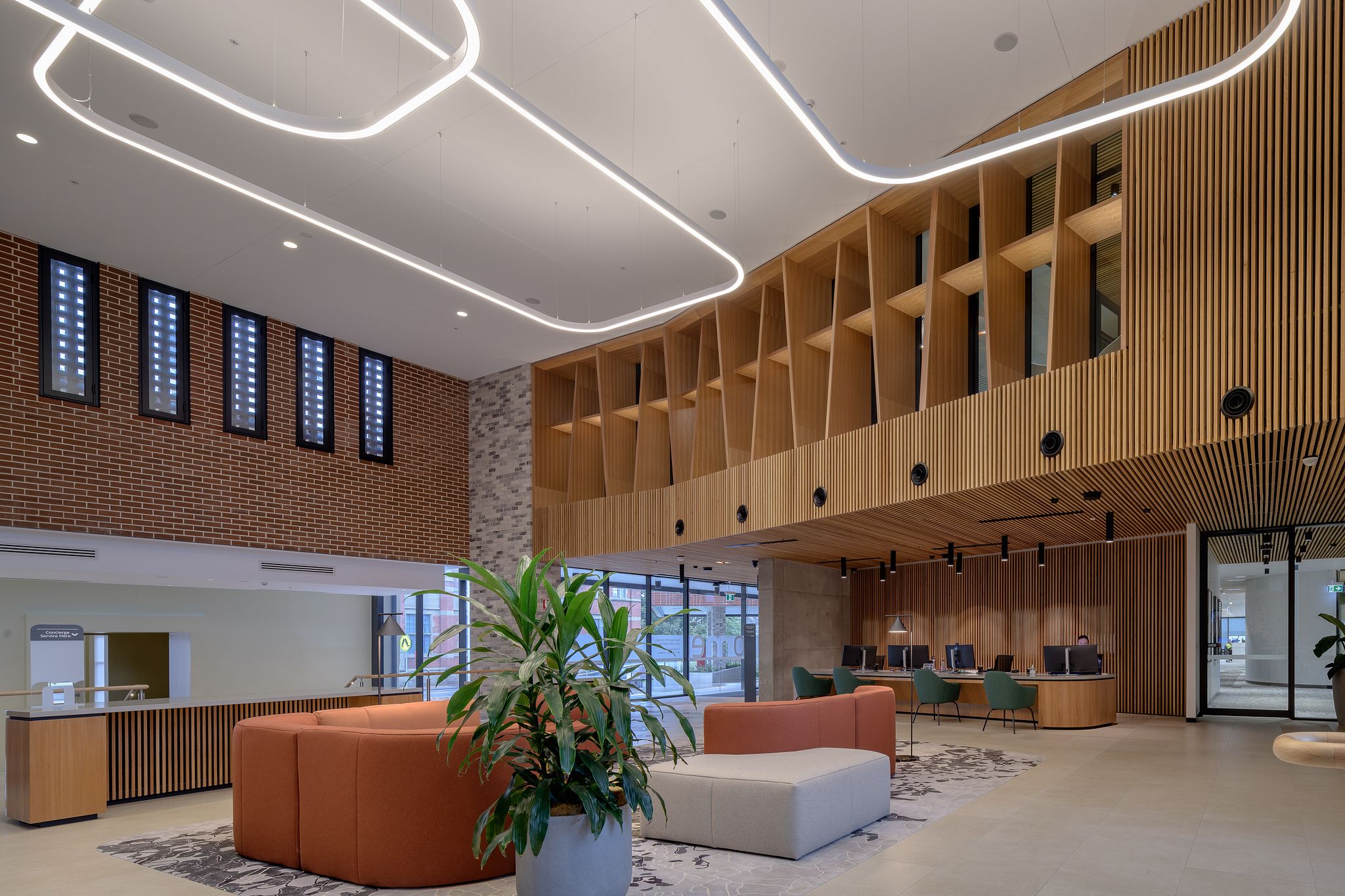

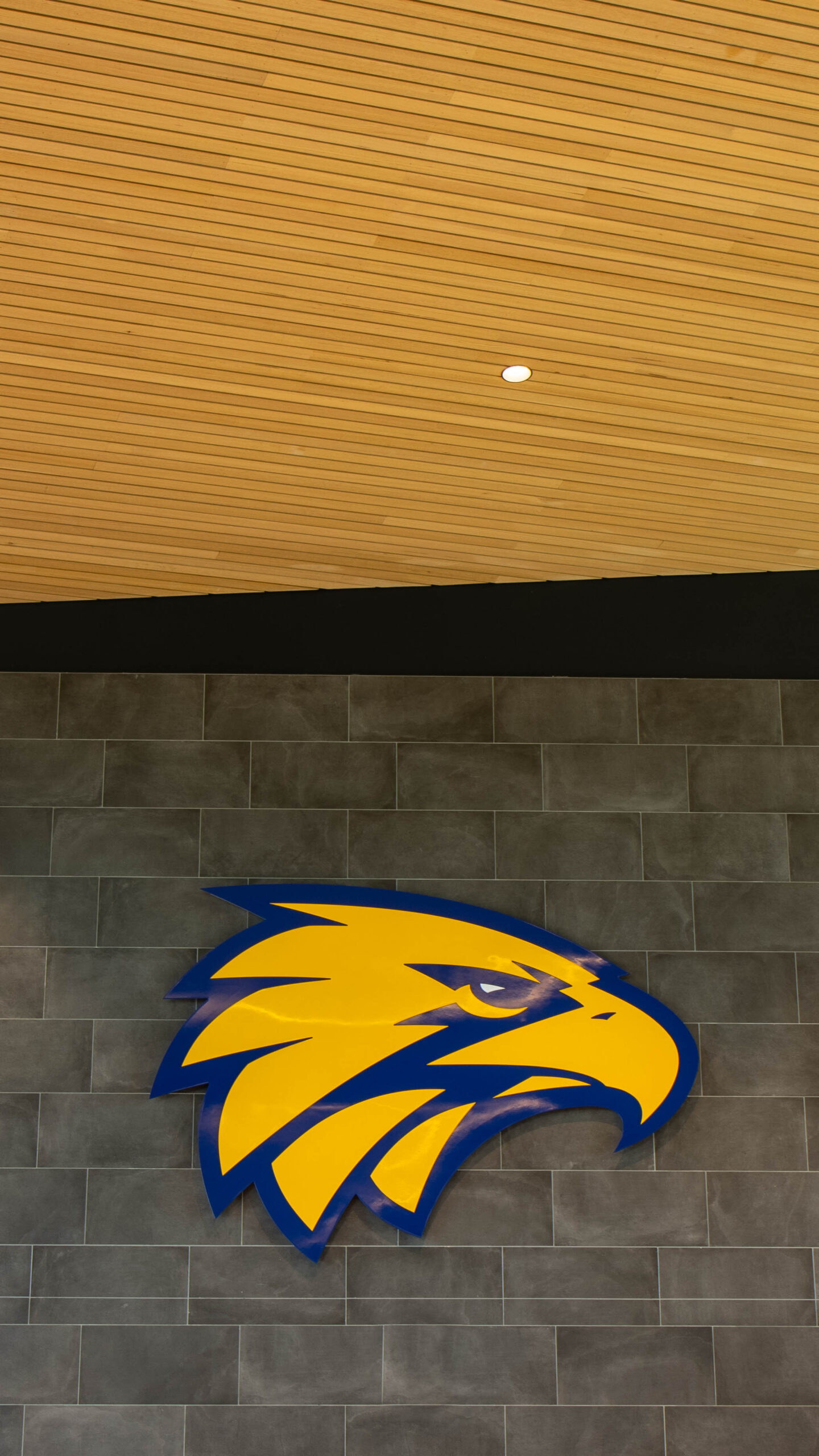

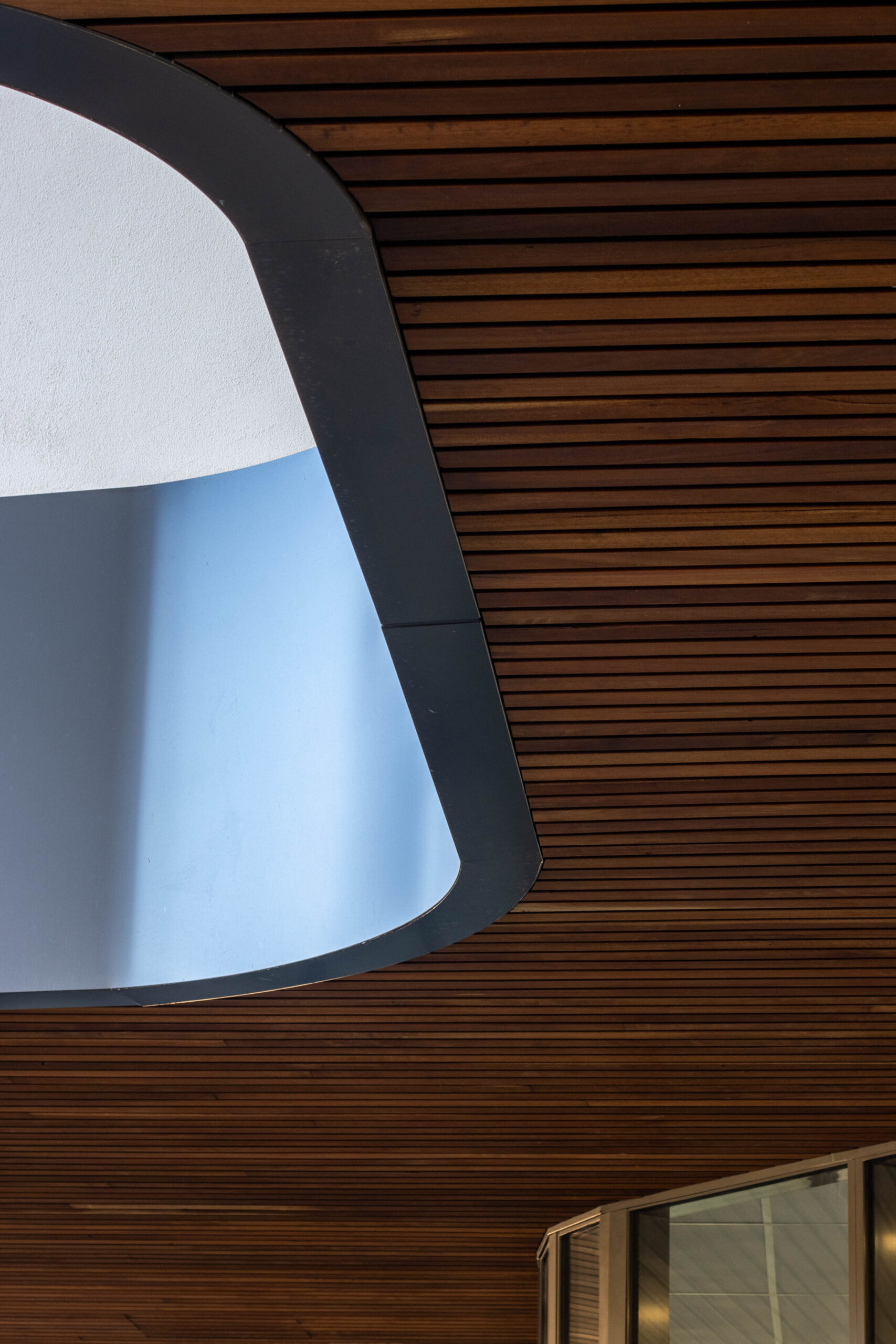

Our first class timber battens are versatile and adaptable, making them an excellent choice for both interior and exterior projects. Proplank hardwood battens have been used in suspended ceiling applications with excellent results, as well as direct mounted applications for both walls and ceilings. With a wide range of timber species, finishes, sizes and spacing configurations possible, Proplank is the ideal choice for when you want flexibility in your design.

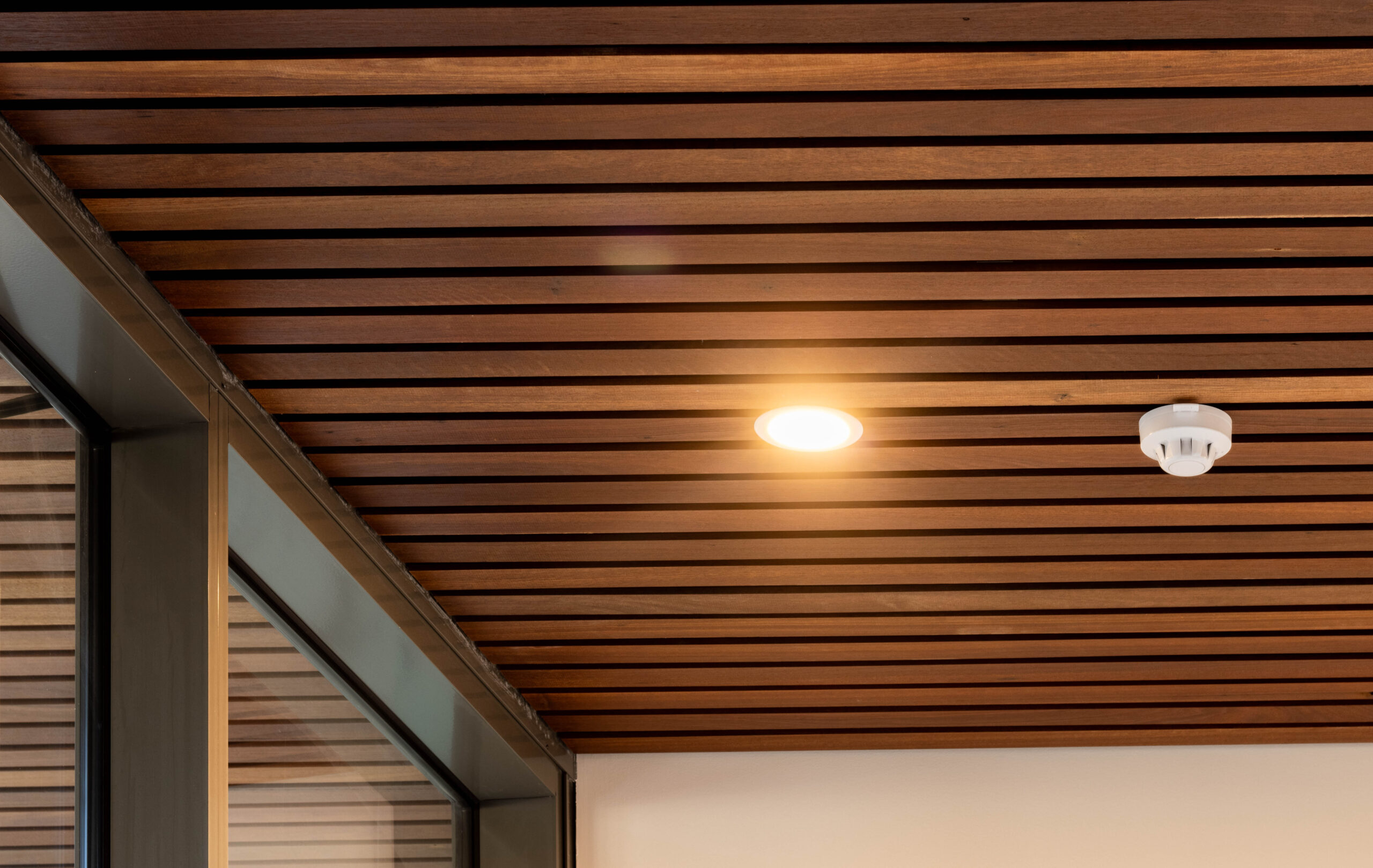

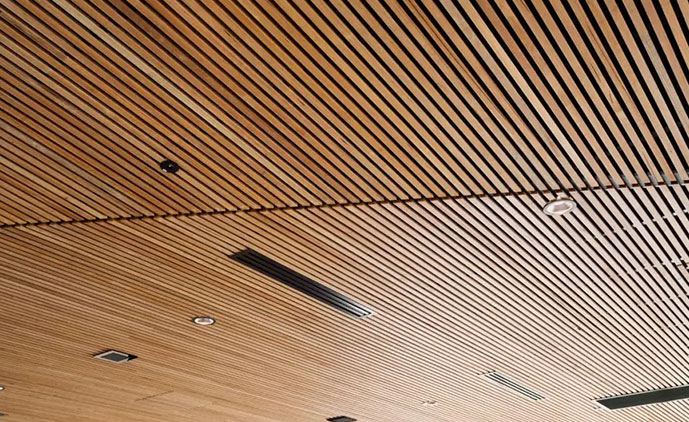

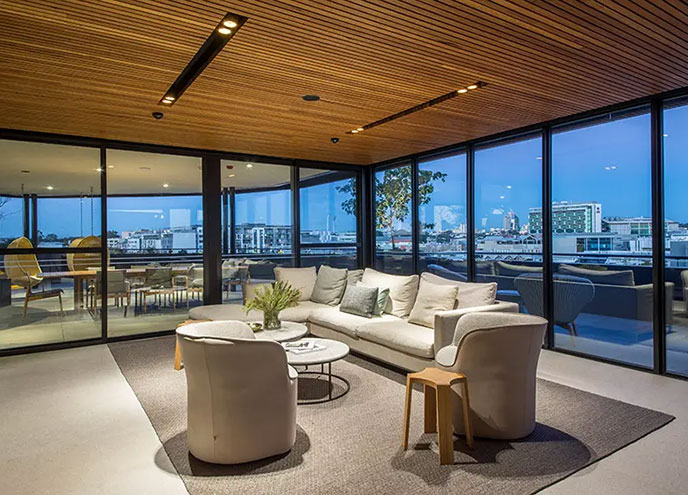

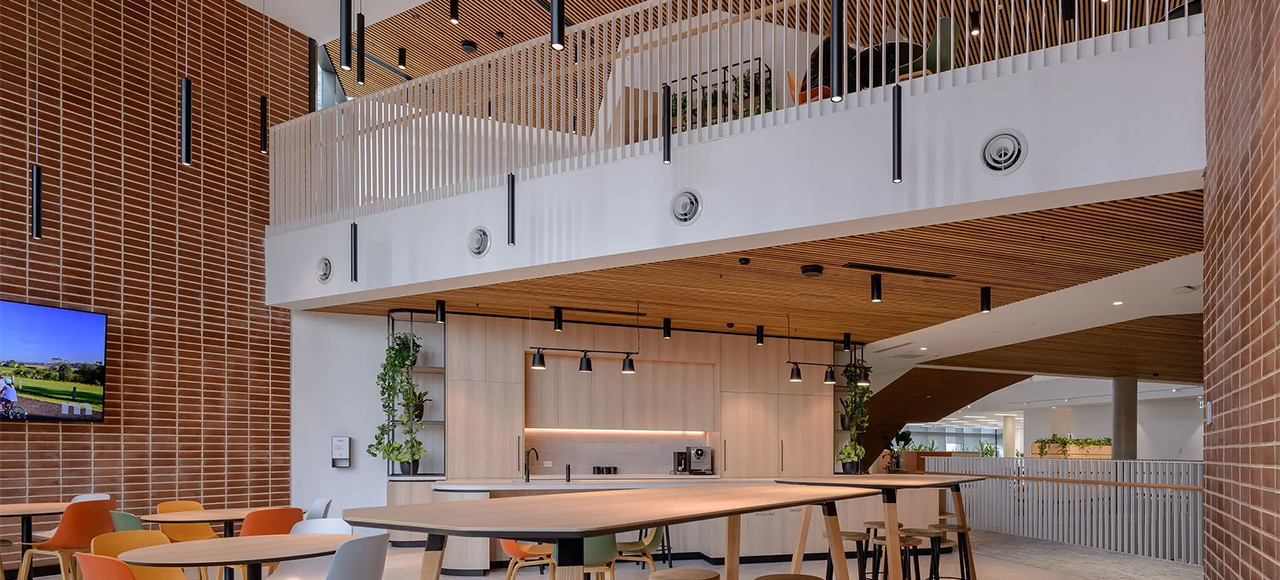

Ceilings

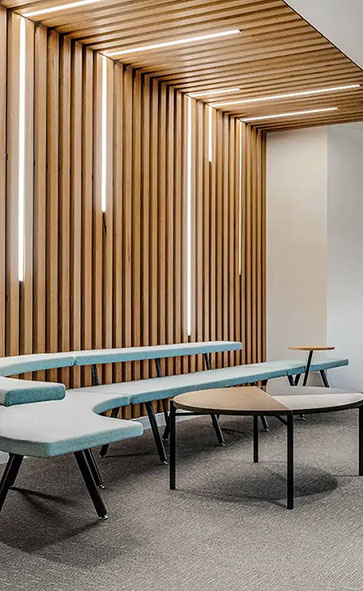

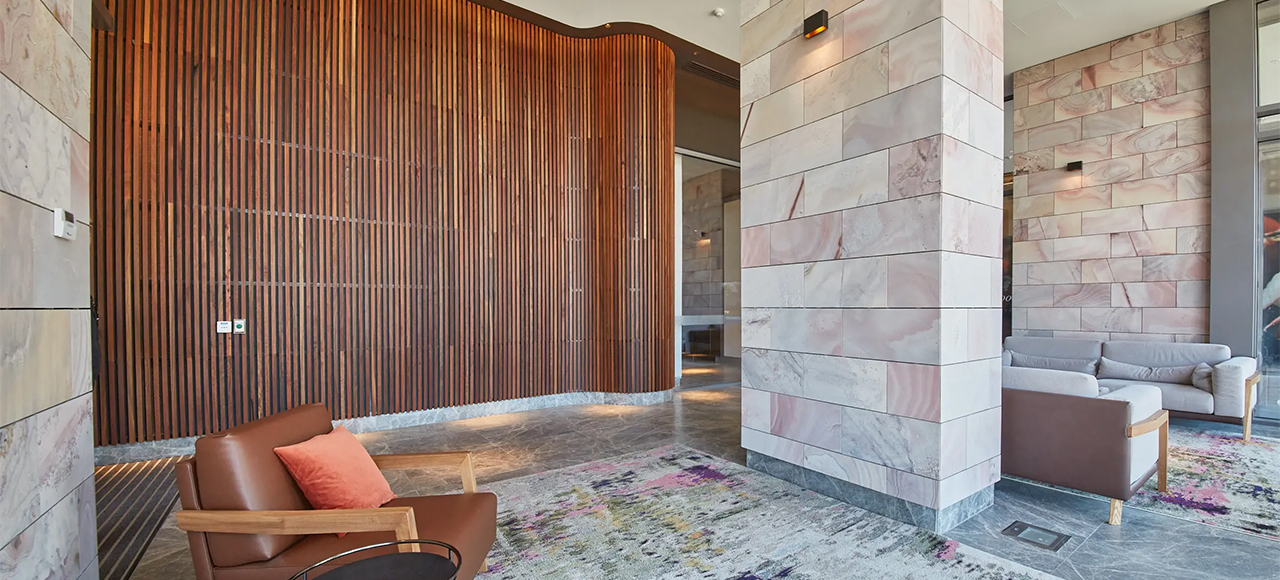

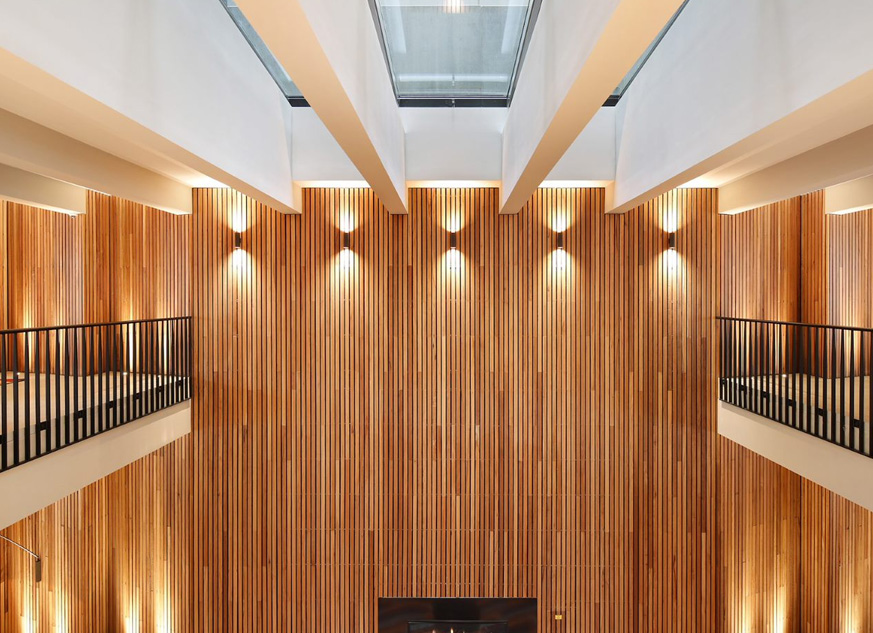

Interior Walls

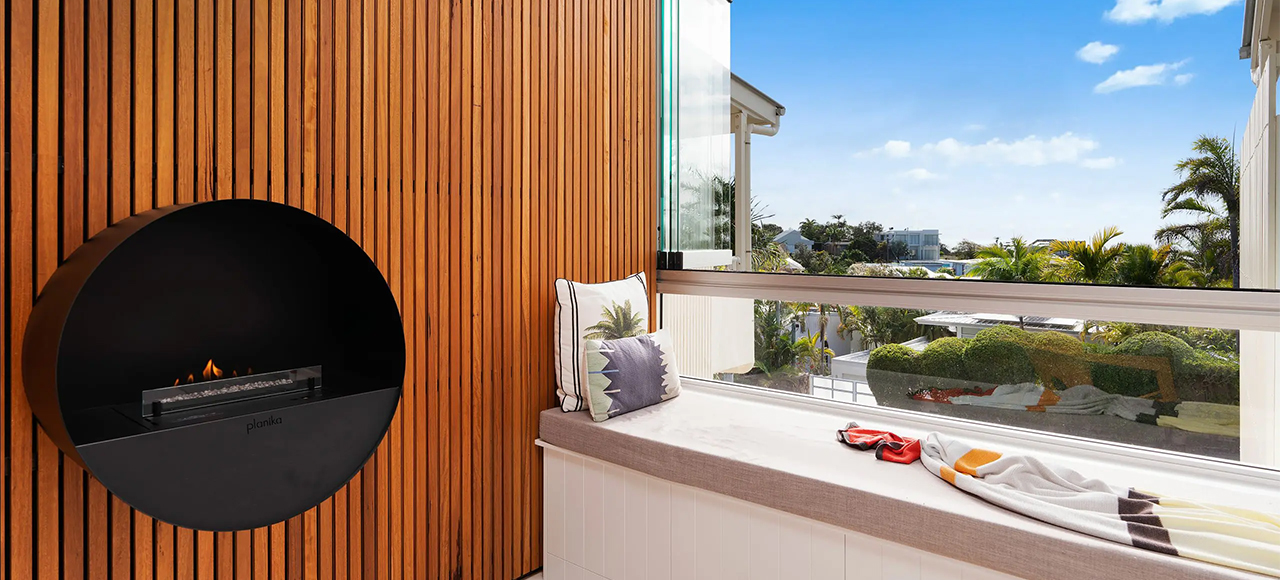

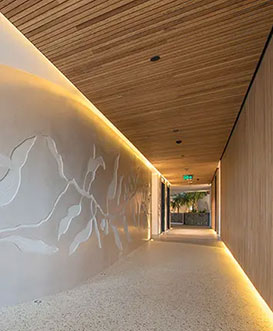

Exterior Walls

Timber species

Select timber species below to see their corresponding finishes

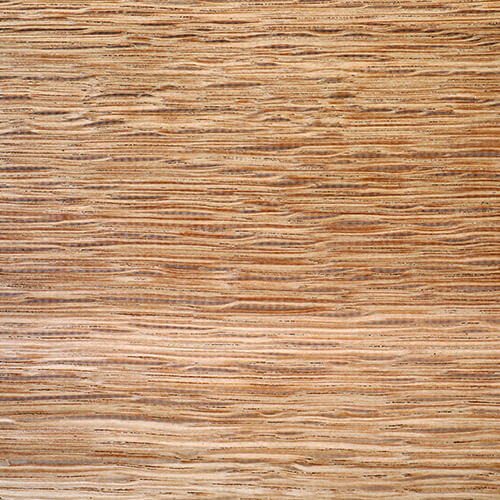

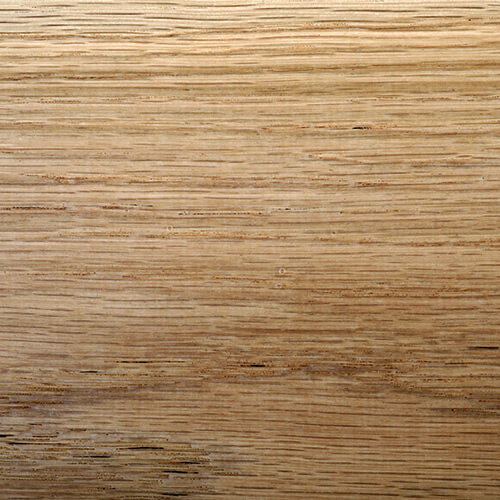

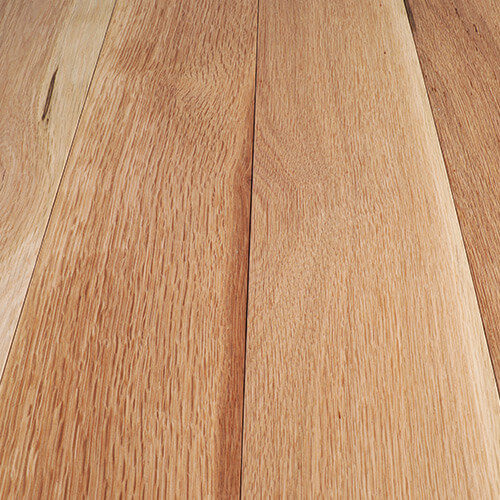

american oak unfinished More Info
American Oak

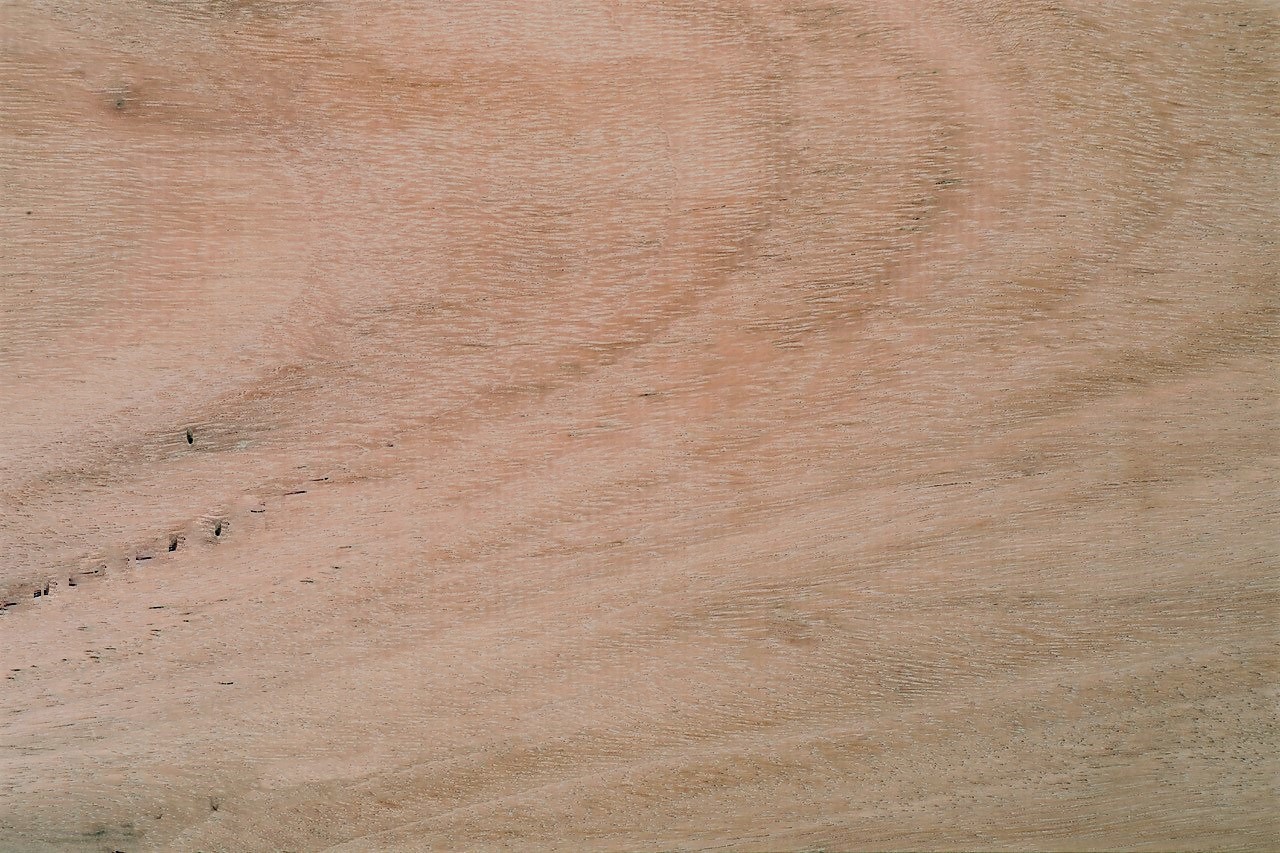

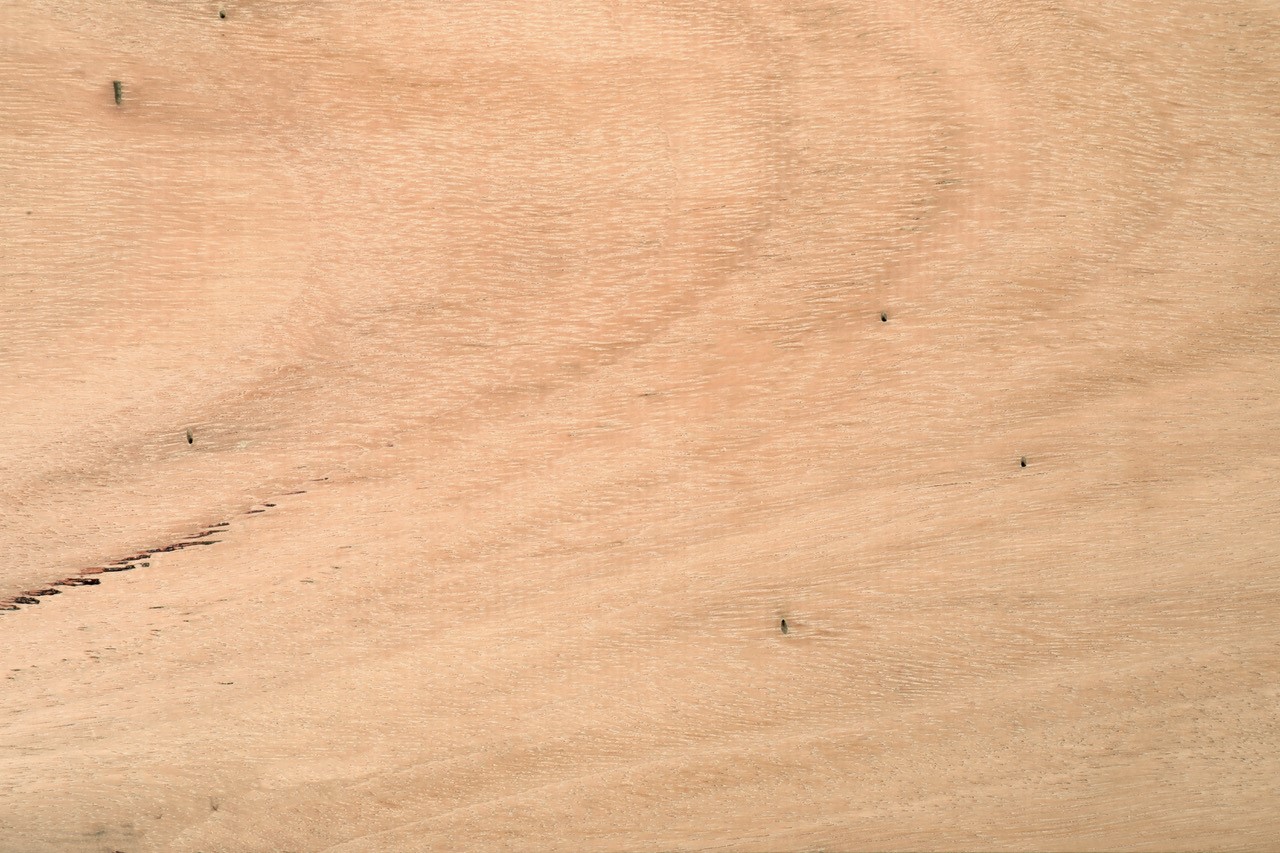

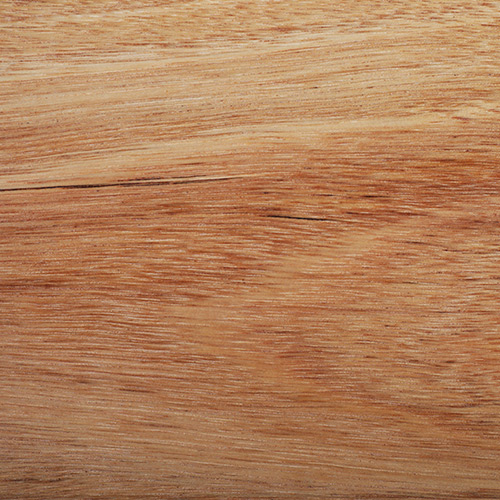

Blackbutt Clear Oiled More Info
Blackbutt

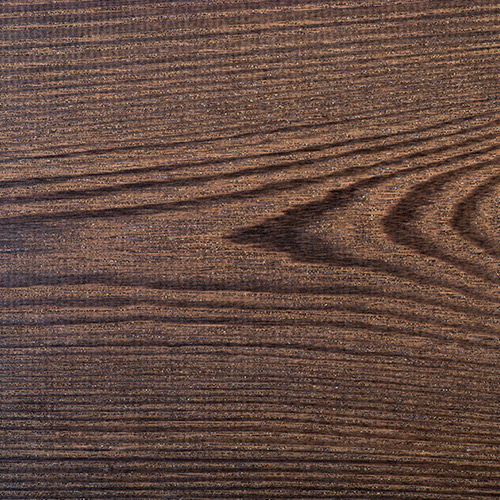

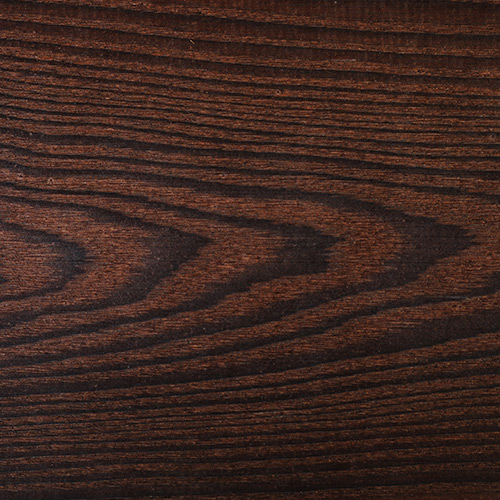

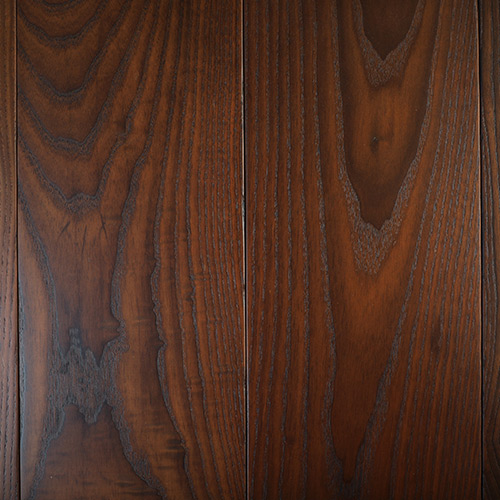

Burnt Ash Clear Oil More Info
Burnt Ash (Thermally Modified)

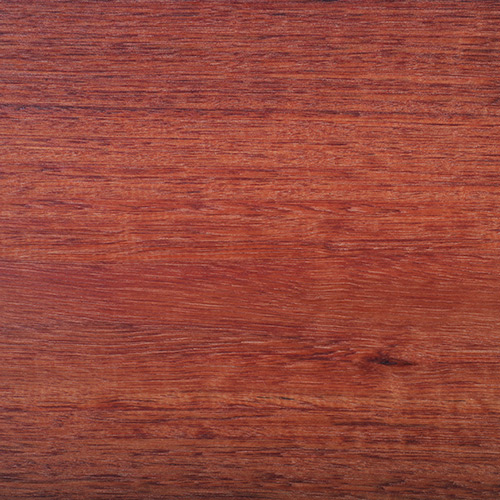

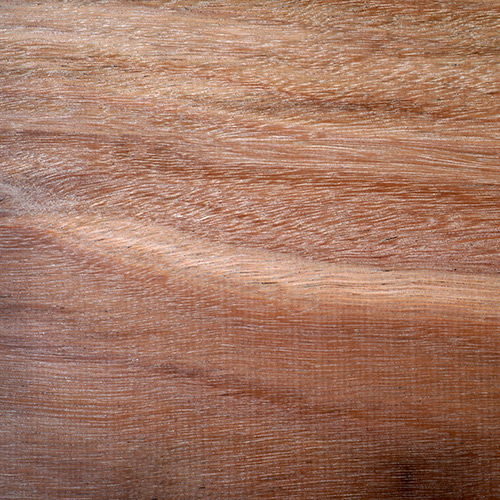

ironbark Clear Oiled More Info
Ironbark

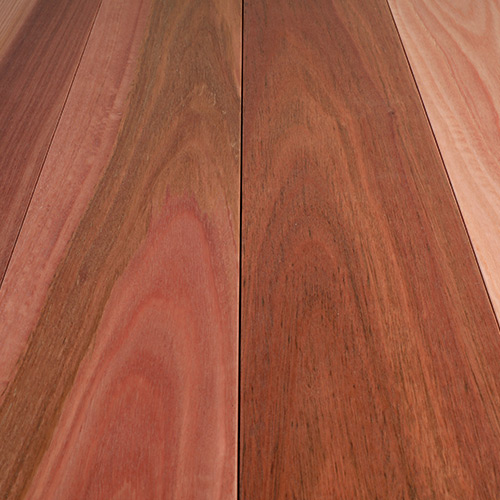

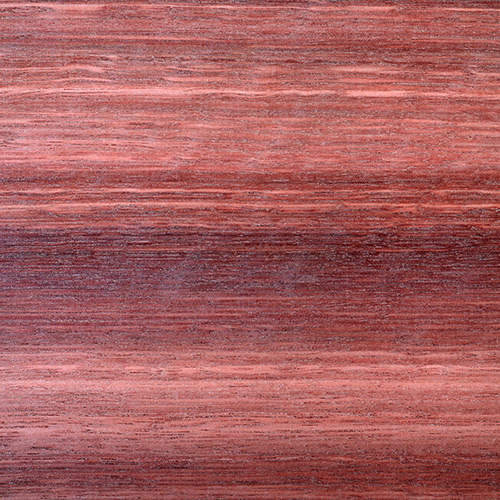

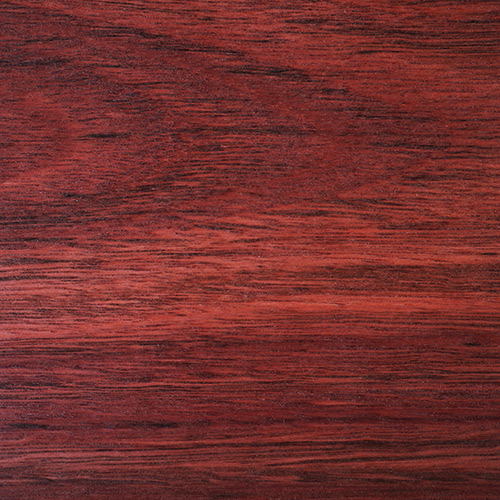

jarrah Cleared Oil More Info
Jarrah

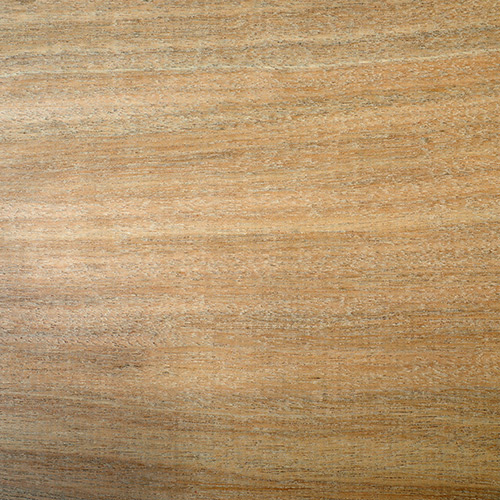

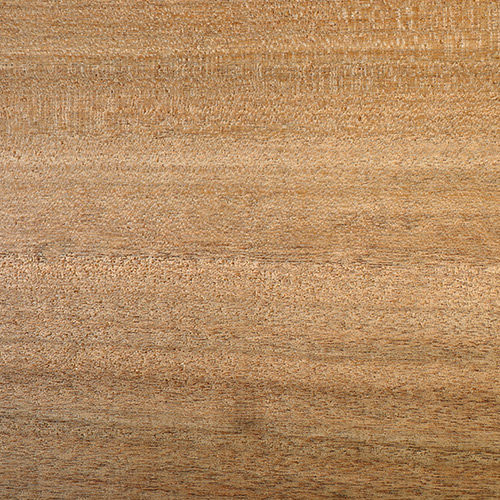

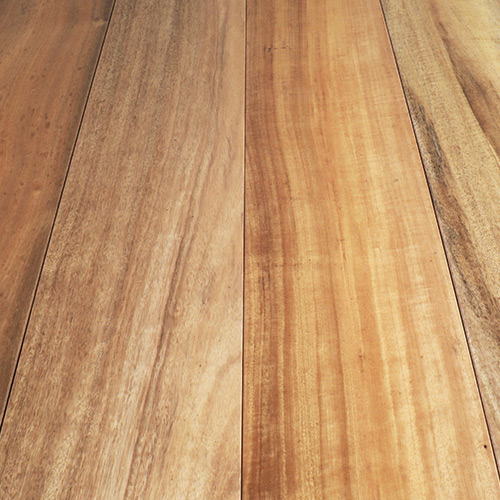

Pacific Teak Unfinished More Info
Pacific Teak

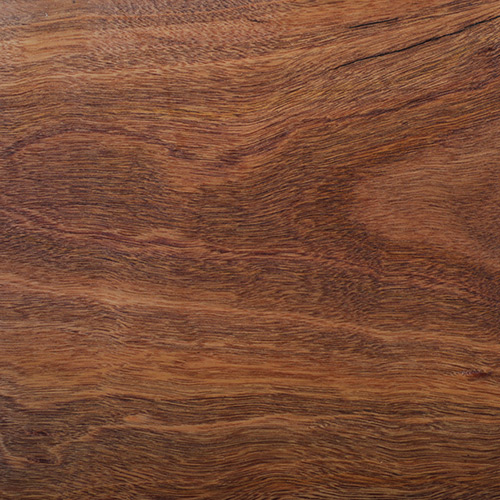

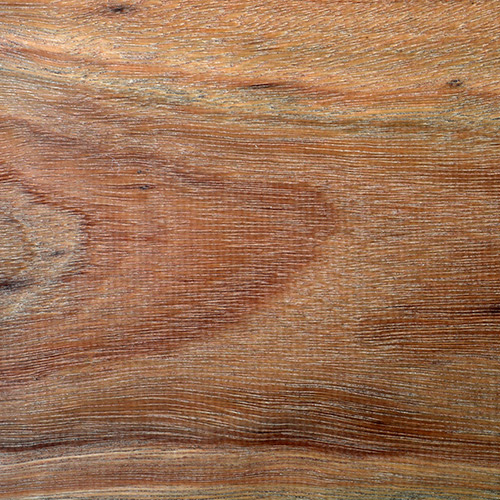

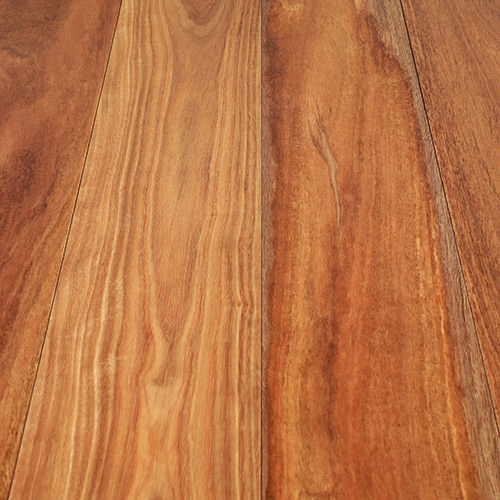

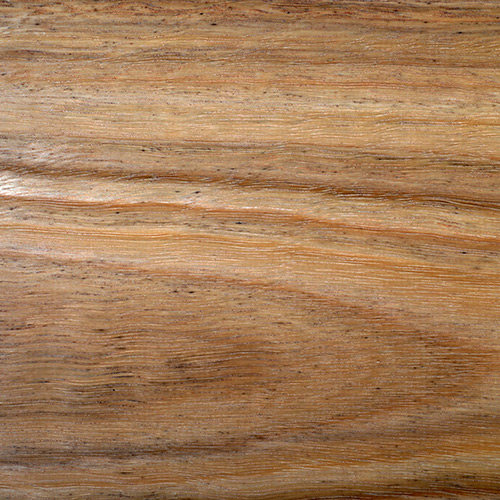

Spotted Gum Clear oiled More Info
Spotted Gum

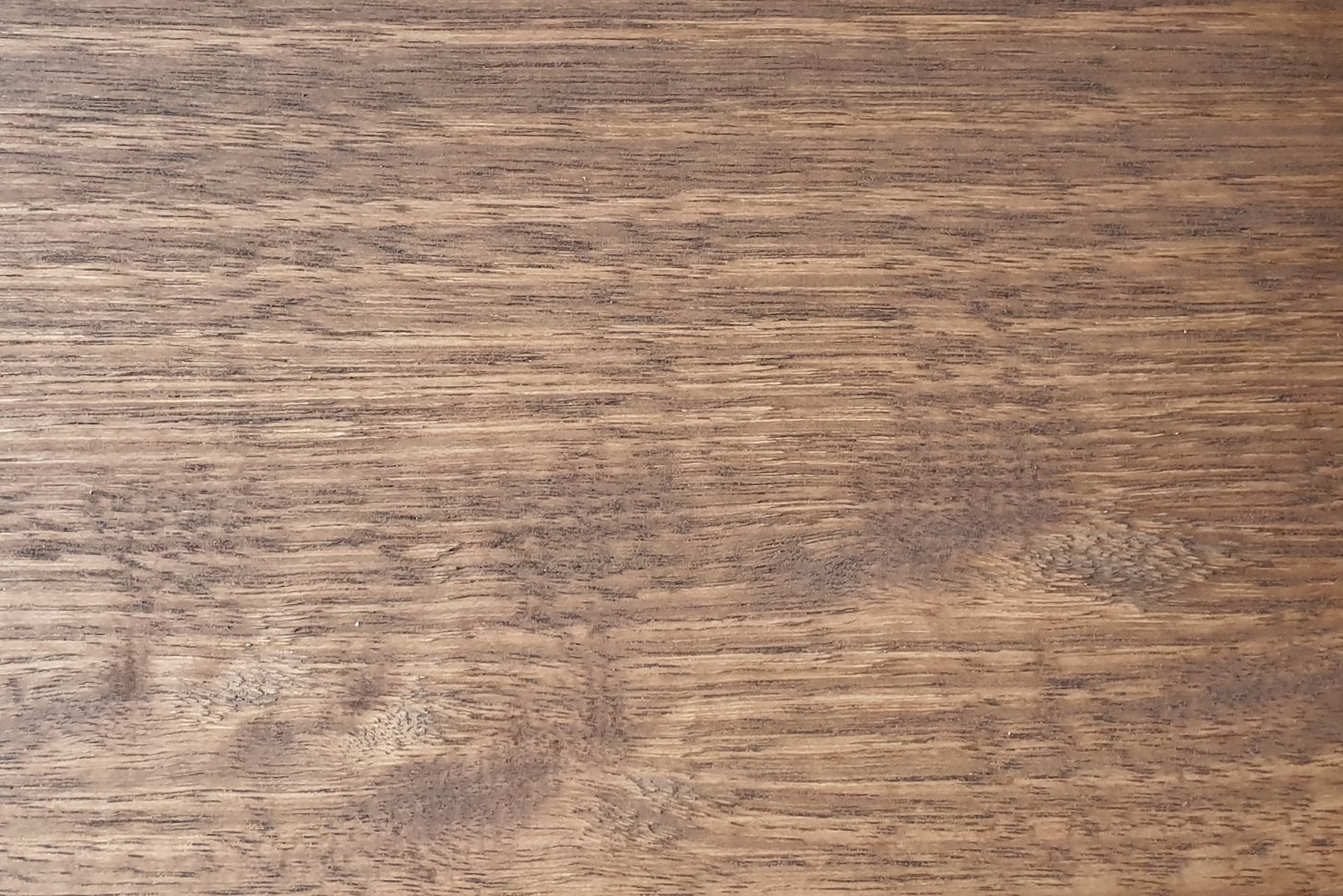

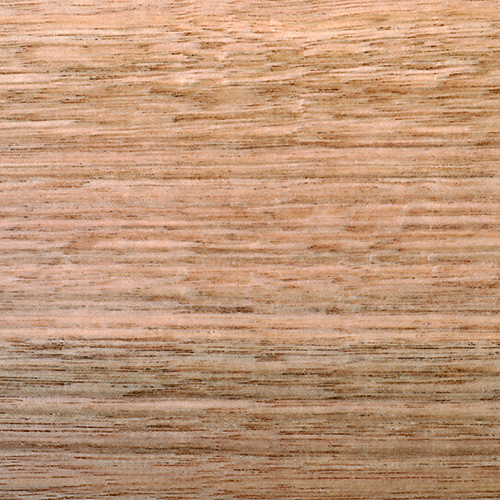

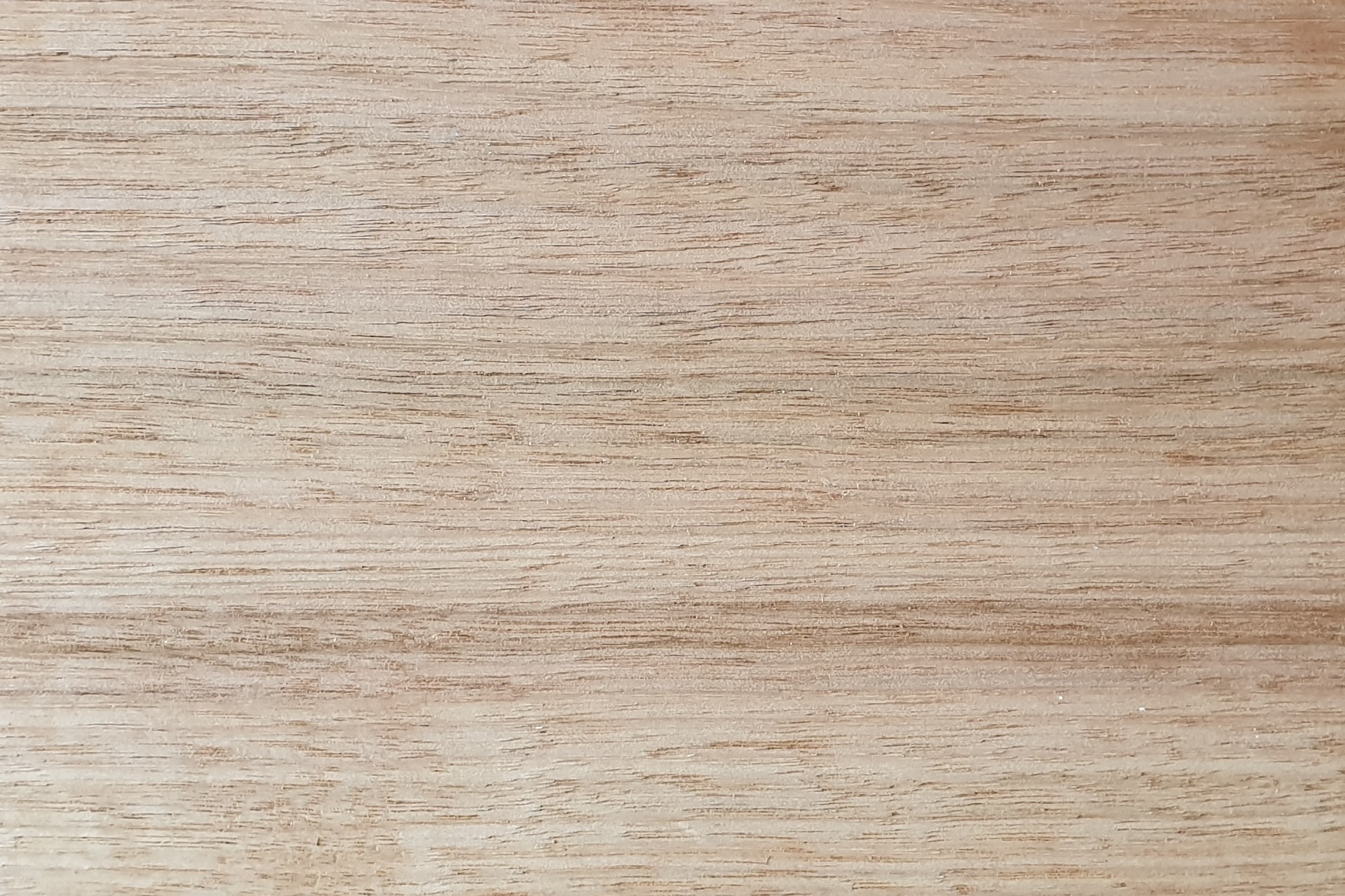

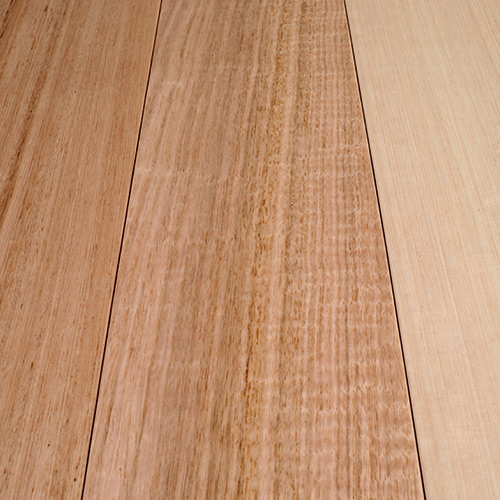

Vic Ash Fireshield More Info
Tasmanian Oak

Profile & Sizes

Dome Profile
  • 40mm x 40mm
  • 30mm x 30mm
Peak Profile
  • 40mm x 60mm
  • 30mm x 30mm
  • 30mm x 40mm
  • 30mm x 60mm
  • 40mm x 30mm
  • 40mm x 40mm
Concave profile
  • 40mm x 20mm
  • 40mm x 30mm
  • 40mm x 40mm
  • 60mm x 20mm
  • 60mm x 30mm
Block Profile
  • 30mm x 30mm
  • 30mm x 40mm
  • 30mm x 60mm
  • 40mm x 20mm
  • 40mm x 30mm
  • 40mm x 40mm
  • 40mm x 60mm
  • 60mm x 20mm
  • 60mm x 30mm
  • 60mm x 40mm
  • 30mm x 20mm

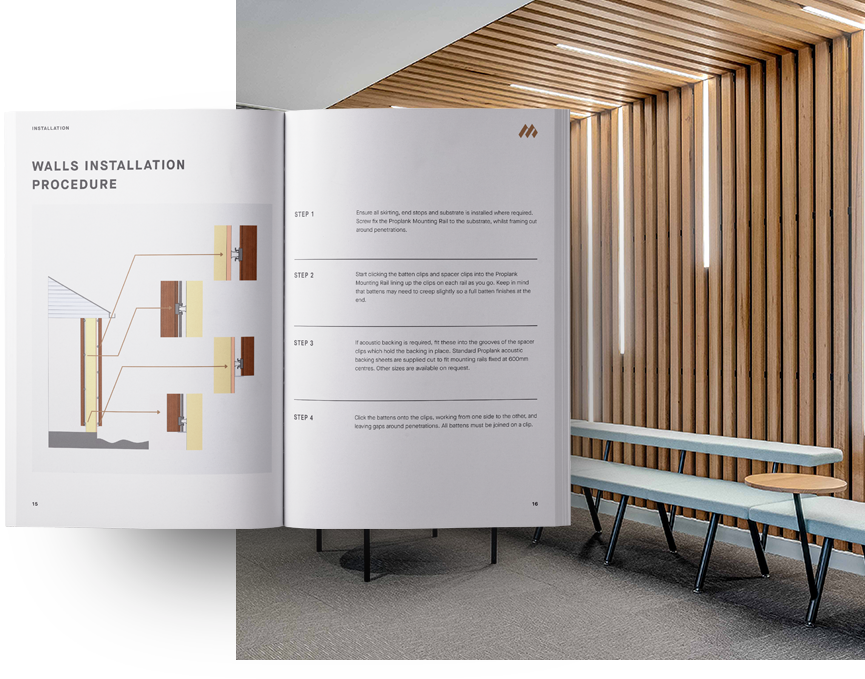

Installation

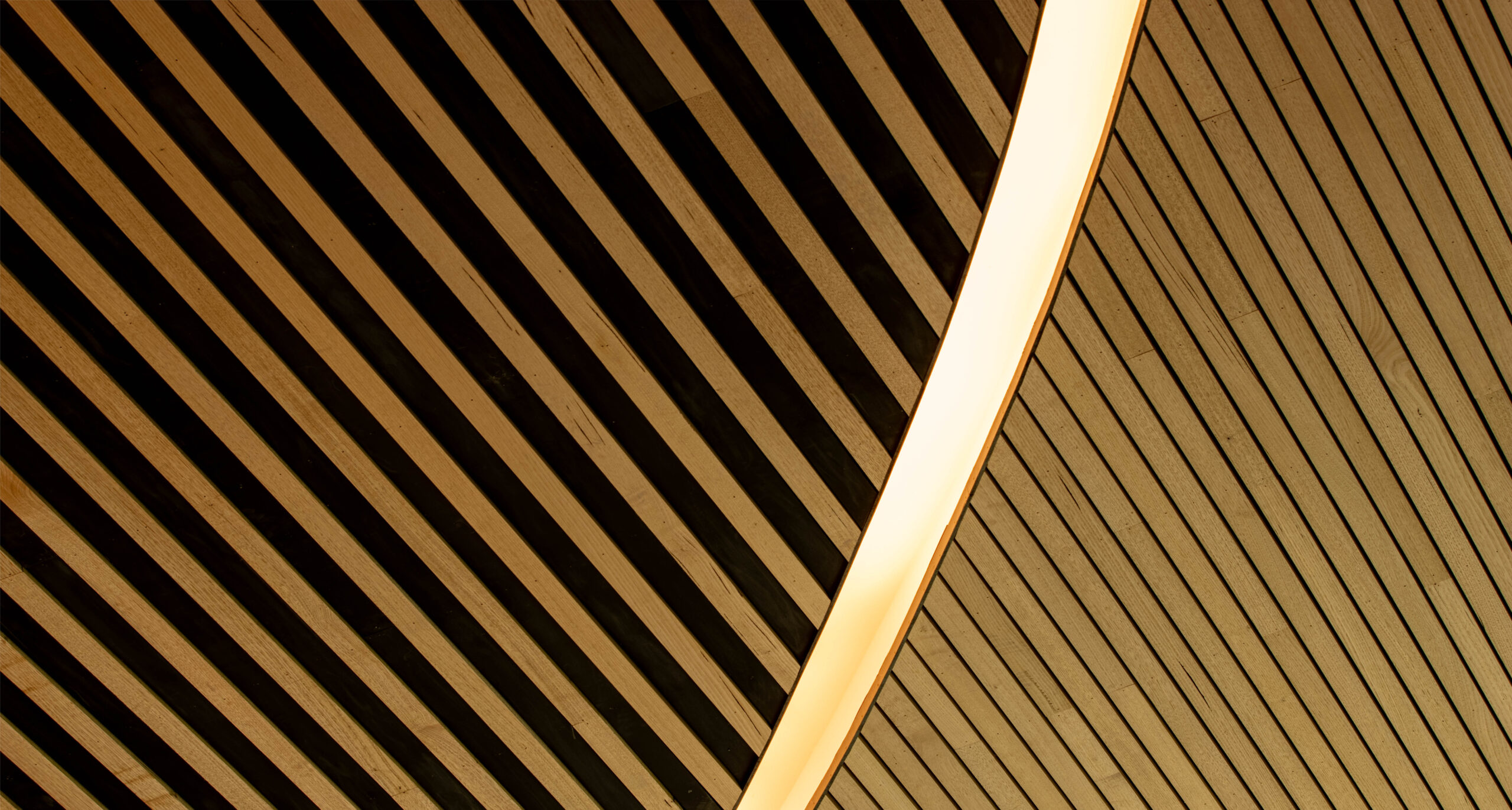

Proplank has been expertly designed for effective and efficient installation for suspended ceiling, fixed ceiling and wall applications. During installation, the steel batten clips are clicked onto a specialised mounting rail. This can be suspended from the ceiling or screwed directly onto the ceiling or wall, depending on the application. Acoustic backing may be fitted in the grooves of the spacer clips, and will be held in place by doing so. Finally, the timber battens are clicked onto the clips in a simple and effective motion.

View Installation Guide
Mortlock Timber

Useful Info

warranty

Warranty Information Sheet

Download PDF

fire

Fire Information Sheet

Download PDF

Maintenance

Maintenance Information Sheet

Download PDF

Proplank DWG

Proplank DWG Files

Download ZIP

Faqs

Does it meet group 1 fire rating?

As standard It meets group 3 fire rating. If Group 1 fire rating is required the Fireshield TimberClear 1FR coating should be specified. Fireshield TimberClear 1FR can not be used for applications exposed to the weather. Read more about how we can help achieve Group 1 rating for a project as accredited applicators here.

Does Mortlock Timber provide an installation service?

Mortlock Timber does not provide installation services. However, we do work with installers to ensure a successful project. That may include providing crucial installation, care and maintenance information to assist with a smooth and quality result.

Proplank Timber battens can be installed by a qualified carpenter or joiner.

How much does the Proplank timber batten system cost?

The Proplank system comes with a large range of options so the price range is very broad however as a guide our most popular options are between $250 p/m2 and $500 p/m2. For a closer look at pricing, download our comprehensive pricing guide below. For further information on what options move the price up or down CLICK HERE

What is the lead time from order to delivery?

It depends on the options you select however as a guide 6-8 weeks is ideal for our standard range of products. Its possible it could be shorter than that and can also be longer depending on your selection. We recommend to speak to Mortlock to discuss your project for accurate lead times.

What is the minimum order quantity for Proplank?

The minimum project size for Proplank is 30m2. As Mortlock is a make-to-order manufacturer our products are not an off-the-shelf product. Factors like machine setup and storage of materials internal processes drives the pricing up on smaller projects meaning it’s not cost effective for us to supply material for smaller projects. Read more about our make to order timber manufacturer CLICK HERE

Does Proplank come in panels or individual battens?

Proplank timber batten system consists of individual timber battens and fixing components. Proplank does not come as panels.

Is Proplank real timber?

Yes, all of our products are real timber. Mortlock Timber does not supply fake timber, composite timber or timber look products.
